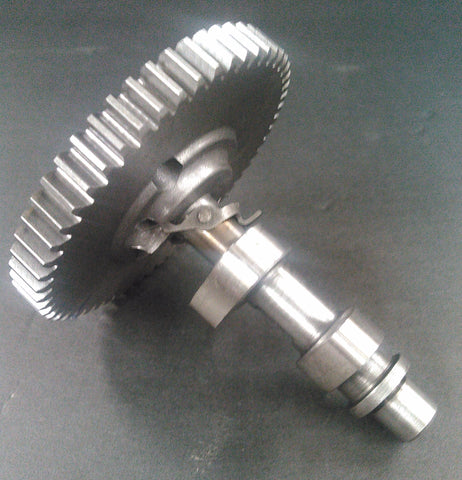

DynoCams Camshafts - MOD1 (w/Compression Release, Welded Lobe, Animal Core)

  • ON SALE
  • Regular price $113.75


• The MOD1 has a very wide power band that makes slightly more top end than the 308 grind, and is easy on the valve train. The MOD1 requires an upgraded spring package, billet rod, and billet flywheel.
• The Lobes on this Cam are Welded for extra durability.
• This cam has the compression release installed.


SPECS

Engine:                                Briggs Intek OHV

Recommended Class:        Modified

Target (MAX) RPM:             9000

Spring Pressure (In / Ex):   34-36 lbs

Valve Lash (In/Ex):              0.003"

Ignition Timing:                   30-32 Deg BTDC



PROFILE

                         Intake         |       Exhaust

Open:          42.0 BTDC            78.0 BBDC

Close:          83.5 ABDC           46.0 ATDC

Lift:              0.310"                   0.310"

C/L:              108.0 ATDC          108.0 BTDC

DUR @50:   247.6 Deg             247.6 Deg
